Why use Heat Networks?

  • Power stations generate electricity and heat – the heat is generally wasted to atmosphere in "cooling towers".
  • It would be good if the waste heat could be piped to buildings to provide heating.
  • DECC has for many years been hoping to see an increase in the 2% of buildings in the UK served by district heating.
  • CIBSE has responded by publishing a Code of Practice to encourage the efficient use of district heating.
  • The Code highlights the issues to be considered and – inadvertently – explains why the uptake has been so low.
Heat Networks

Heat Networks Code of Practice CP1

The Heat Networks Code of Practice has been produced by CIBSE and ADE with extensive participation from the GLA and others. The introduction to the Code states that:

The development of heat networks (or district heating) in the UK is increasingly recognised as an important component in the UK’s future energy strategy.

Heat networks can address the ‘energy trilemma’ by meeting the following strategic aims:

  • To reduce greenhouse gas emissions through the use of a wide range of low carbon and renewable heat sources.
  • To improve security of energy supply by diversifying the energy sources for heating and reducing our dependence on fossil fuels.
  • To offer a supply of heat that is good value and that contributes to reducing heat poverty.

Why are gas-based CHP Networks not being adopted?

There are a number of barriers to the uptake of gas-based Combined Heat and Power Networks. The reasons can be categorised under the headings of Cost, Legal, Environmental and Customer resistance:

Cost

  • Space needs to be found to accommodate a CHP engine

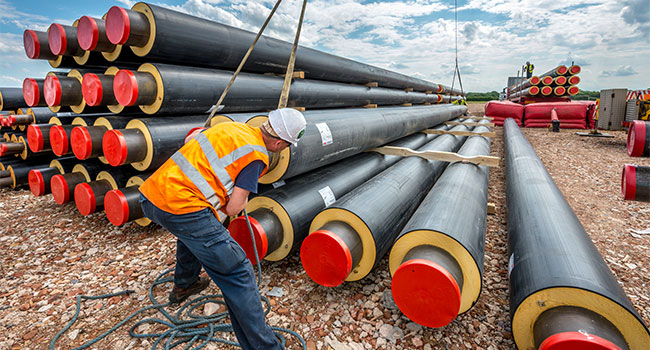

  • a high temperature heat network requires large diameter steel piping to distribute hot water
  • heat losses to the ground will be suffered unless expensive insulation is used
  • the heat loads need to be carefully established in advance – because subsequent increases are expensive, and reduced loads limit efficiency
  • major capital costs have to be financed before income can be collected
  • major running costs require ongoing metering and administration costs.

Legal

It is not easy to get all parties to commit to the binding long term contracts to take heat that are needed before finance can be agreed and construction can begin.

Environmental

Air quality is an increasing concern, especially in city centres, and all CHP engines rely on combustion which emits NOx and SOx as well as CO2.

Customer resistance

Consumers have traditionally been resistant to signing long term contracts, with a concern that they may have to share costs of heating provided to others.

CHP based heat networks do not provide any cooling.

Energy Trilemma

What is the alternative to using CHP?

There is an alternative to gas-based CHP district heating which is more effective in resolving each of the three facets of the Energy Trilemma. To avoid emitting CO2 from heating it is important to avoid combustion. This can be done with the electrification of heating and utilising:

  • heat collection in summer,
  • heat storage over the autumn
  • and heat transfer in winter.

These can all be achieved using ground source heat pumps which also concentrate heat. With the continuing decarbonisation of the grid, a heat pump causes the emission of smaller amounts of CO2 each year from power stations.

The alternative to using CHP is a Heat Sharing Network

Instead of an expensive central energy centre sending hot water through an expensive steel pipe network, a small diameter flexible plastic pipe network connects each building with water close to ground temperature. Each building employs a heat pump to extract heat if it needs heating, or reject heat if it needs cooling.

This radically simpler mechanism yields no carbon emissions on site – nor any other product of combustion – and allows for incremental expansion of the network at marginal cost. Each building is in control of its own costs and its own temperature controls.


Traditional Gas-Powered District Heating Heat Sharing Networks
High cost of insulated steel pipework Low temperature flexible plastic pipe network
No cooling without separate additional circuit Cooling from heat pumps
Large additional cost for cold circuit Separate cold circuit not required
High cost of central heat generation Low cost local heat pumps borne by tenants
High running costs of central heat generation Local heat pumps under tenants' control
Admin cost of metering, accounting, collecting revenues Tenants pay their own electric cost directly
Heat Sharing dividend
CHP systems emit CO2 and other noxious gases No on-site emissions at all
Can use waste heat
No heat recycling Provides Seasonal Thermal Energy Storage
Uncertainty of future heat demand Allows incremental expansion
Uncertainty of future heat sources
Legal cost of agreements to share capital costs Legal cost of agreements to share (lower) capital costs
Legal cost of agreements to share high running costs Low central running cost minimises risk
Legals need to meet changes of tenants during the scheme Fewer barriers to new tenants - low risk to existing tenants



The revised version of the CP1 Code, issued in January 2021, places greater emphasis on lowering operating temperatures through better design and operation. Combined heat and power (CHP) is now mentioned just 75 times compared to 82 mentions of heat pumps. In view of the current lower carbon intensity of the UK grid (181g/kWh average in 2020) the trend to lower temperatures for greater efficiency and to heat pumps is likely to increase.

There is also a strong encouragement to reducing the DHW supply temperature to 50°C, instead of 55°C, measured at the HIU outlet instead of at the tap. These lower return temperatures help lower the primary temperature in the district heating circuit and this also encourages the use of heat pumps.



Balanced Energy Networks

An Innovate UK funded demonstration pioneered the electrification of heat and Heat Sharing Networks in the Balanced Energy Networks project in central London – the first large scale Fifth Generation District Heating Network in the UK.

Shoreham Harbour Heat Network

ICAX is a partner in the £42m Smart Hubs project which is building a district heat network in Shoreham Harbour based on marine source heat pumps provided by ICAX. The Smart Hubs project is also establishing a Virtual Power Plant in West Sussex to help balance supply and demand for electricity in the local smart grid.
